VACUUM BOOSTERS
ER Series and MKBM Series
Overview
Vacuum boosters increase pumping speed and throughput in multistage vacuum systems, especially in deeper vacuum ranges. ecoprocess ER and MKBM boosters are engineered to pair with dry screw, liquid ring, rotary vane, and piston pumps to reduce pump down time and stabilize process vacuum under high vapor load.
Boosters are typically selected when a single backing pump cannot economically deliver the required pumping speed at low pressures.

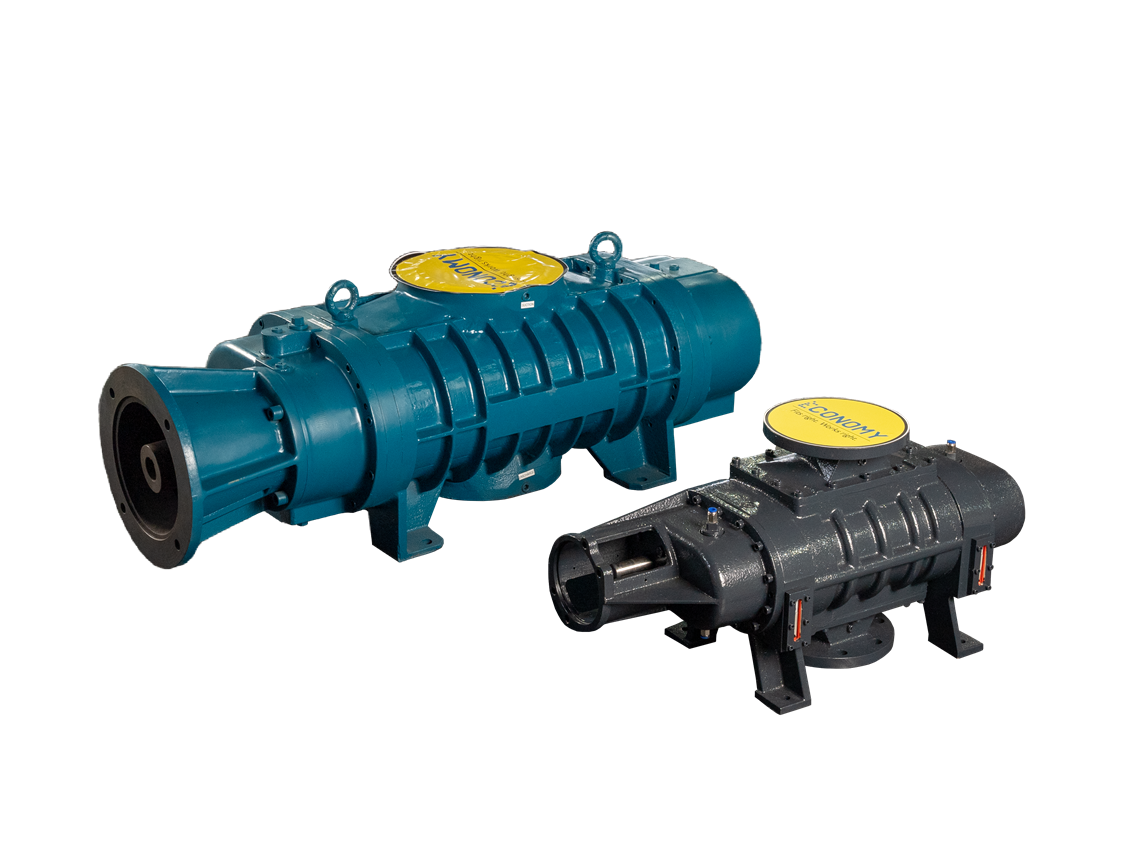

.png?width=1132&height=849&name=boosters-hero%20(1).png "Vacuum boosters")
Applications & Industries
Applications
Multistage solvent recovery
Vacuum distillation
Deep vacuum drying
Large batch reactor evacuation
Degassing & stripping
High-throughput filtration systems
industries served
Pharmaceuticals
Chemicals
Agrochemicals
Food processing
Resins & polymers
Oil & gas
Key Features
-
High pumping speed at deep vacuum
-
Oil free, contactless compression
-
Designed for multistage vacuum trains
-
Compatible with dry screw, liquid ring, vane & piston backing pumps
-
Low vibration & long bearing life
-
ATEX & flameproof options available
-
Wide size range for process flexibility
ER SERIES — MASTER SPECIFICATION TABLE
Capacity at 50 Hz, capacity at 60 Hz, motor HP (50/60 Hz), RPM (50/60 Hz), inlet and outlet size.
|
Model |
Pumping speed 50 Hz (m3/hr) |
Pumping speed 60 Hz (m3/hr) |
Motor HP 50/60 Hz |
RPM 50/60 Hz |
Inlet outlet size (mm) |
|
ER200 |
170 |
210 |
1 / 1 |
2900 / 3600 |
50 / 40 |
|
ER400 |
320 |
400 |
2 / 2 |
2900 / 3600 |
80 / 50 |
|
ER650 |
560 |
670 |
2 / 3 |
2900 / 3600 |
100 / 100 |
|
ER890 |
720 |
890 |
5 / 5 |
2900 / 3600 |
100 / 100 |
|
ER1200 |
1040 |
1280 |
5 / 5 |
2900 / 3600 |
100 / 100 |
|
ER1600 |
1450 |
1720 |
5 / 7.5 |
2900 / 3600 |
150 / 150 |
|
ER5300 |
4500 |
5400 |
7.5 / 10 |
2900 / 3600 |
200 / 200 |
|
ER7000 |
5900 |
7100 |
15 / 20 |
2900 / 3600 |
200 / 200 |
|
ER9000L |
6640 |
9100 |
20 / 25 |
1450 / 2000 |
250 / 250 |
|
ER12000L |
9030 |
12500 |
25 / 30 |
1450 / 2000 |
350 / 350 |
|
ER18000L |
15000 |
18000 |
25 / 30 |
1450 / 2000 |
350 / 350 |
|
ER19000 |
18060 |
21600 |
30 / 40 |
1450 / 3600 |
350 / 350 |
|
ER30000 |
15000 |
33000 |
30 / 40 |
1450 / 3600 |
350 / 350 |
|
ER40000 |
18500 |
38000 |
30 / 40 |
1450 / 3600 |
350 / 350 |
