Distillation, Heat Transfer & Separation Equipment
Ecoprocess manufactures complete process equipment for distillation, liquid-liquid extraction, heat exchange, and chemical reactions. All equipment designed to ASME Section VIII Div-I standards with custom fabrication in exotic alloys.
Applications: Solvent recovery, azeotropic distillation, chemical synthesis, heat transfer, and extraction processes.
Process Equipment Portfolio
Distillation Columns
Distillation columns separate components with different boiling points through heat and mass transfer. Complete systems include columns with internals, condenser with reflux control, and reboiler.
Column Specifications:
- Design code: ASME Section VIII Div-I
- Verticality and ovality maintained per code

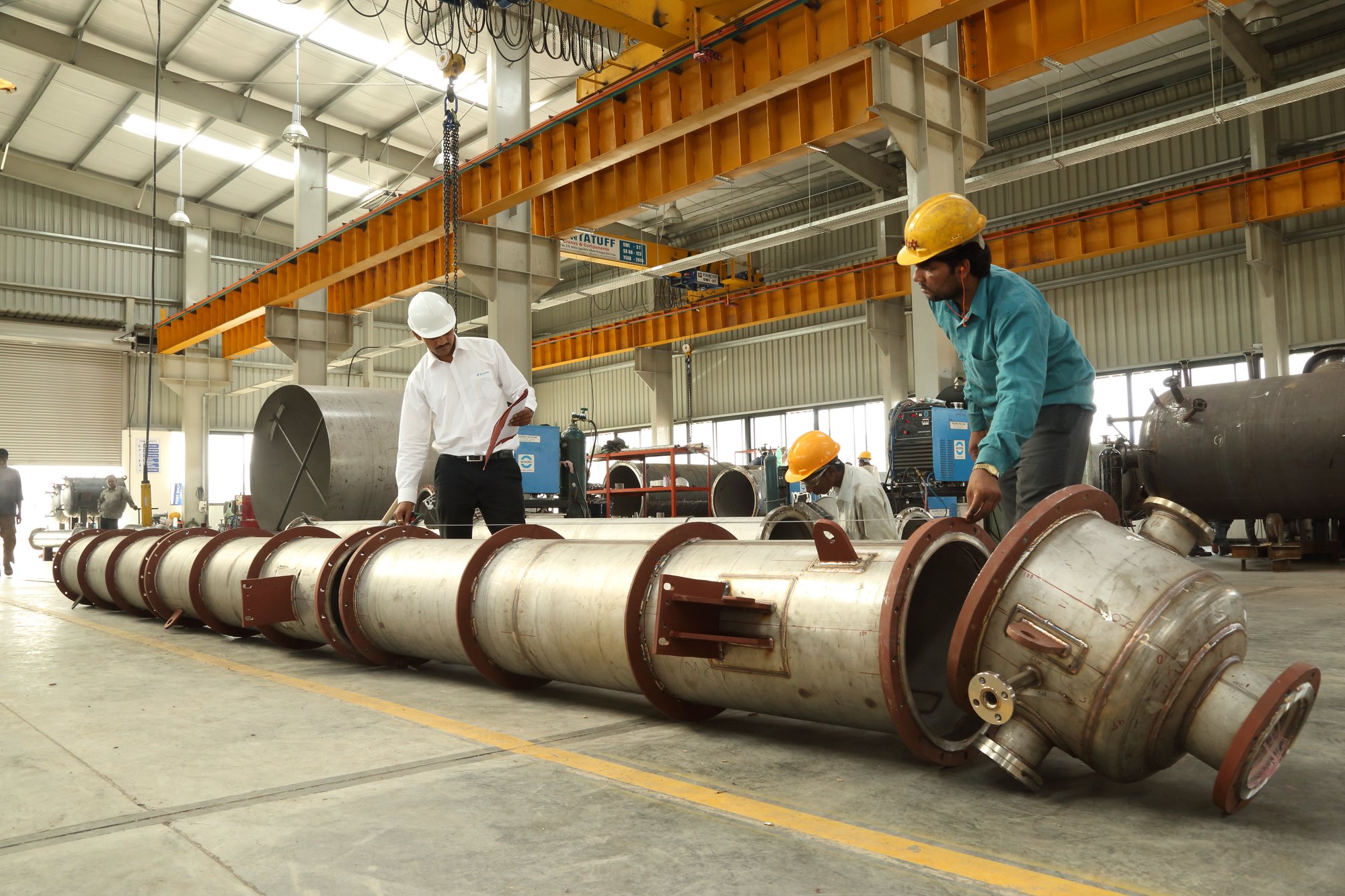

- Facility to fabricate up to 2700mm diameter, 40m length
- Materials: SS, Hastelloy, Titanium, and all exotic alloys
Column Internals:
- Random packing or structured packing
- Liquid distributors
- Support grids and hold-down plates
- Demister pads
Complete System Includes:
- Top condenser with reflux control
- Falling film or thermosiphon reboiler at bottom
- Instrumentation and controls
- Optional PLC/SCADA integration
Supply Options:
- With process guarantee (turnkey)
- As fabricated item per customer drawing
- Complete system with full instrumentation
Applications:
- Separation of non-azeotropic mixtures (Methanol-Water, Toluene-Ethyl Acetate)
- Heterogeneous azeotropic separation (Ethanol-Water, IPA-Water, Acetonitrile-Water)
- Solvent recovery from process streams
- Product purification
Integration:
- Can combine with evaporator & dryer for solids-containing feeds
- Integration with liquid-liquid extractor for azeotropic systems
- Complete solvent recovery setups
Liquid-Liquid Extractor (LLE)
A Liquid-Liquid Extractor uses an immiscible solvent to extract desired components from a liquid feed. Eccentric agitator provides a series of mixing and settling zones for efficient mass transfer.
How It Works:
- Immiscible solvent has higher affinity for desired component
- Continuous and dispersed phases based on properties
- Eccentric agitator creates mixer-settler zones
- Extract: solvent with desired component
- Raffinate: feed with minimal desired component
Features:
✓ Continuous operation vs. batch kettles✓ Reduced solvent consumption, power, and space
✓ Consistent results
✓ High extraction efficiency
Applications:
- Extraction of products or impurities from reaction mass
- Acidity removal by washing
- Separation of close-boiling components
- Wastewater treatment (COD & BOD reduction)
Pilot Plant Available: Test extraction efficiency with your materials
Agitated Reactors

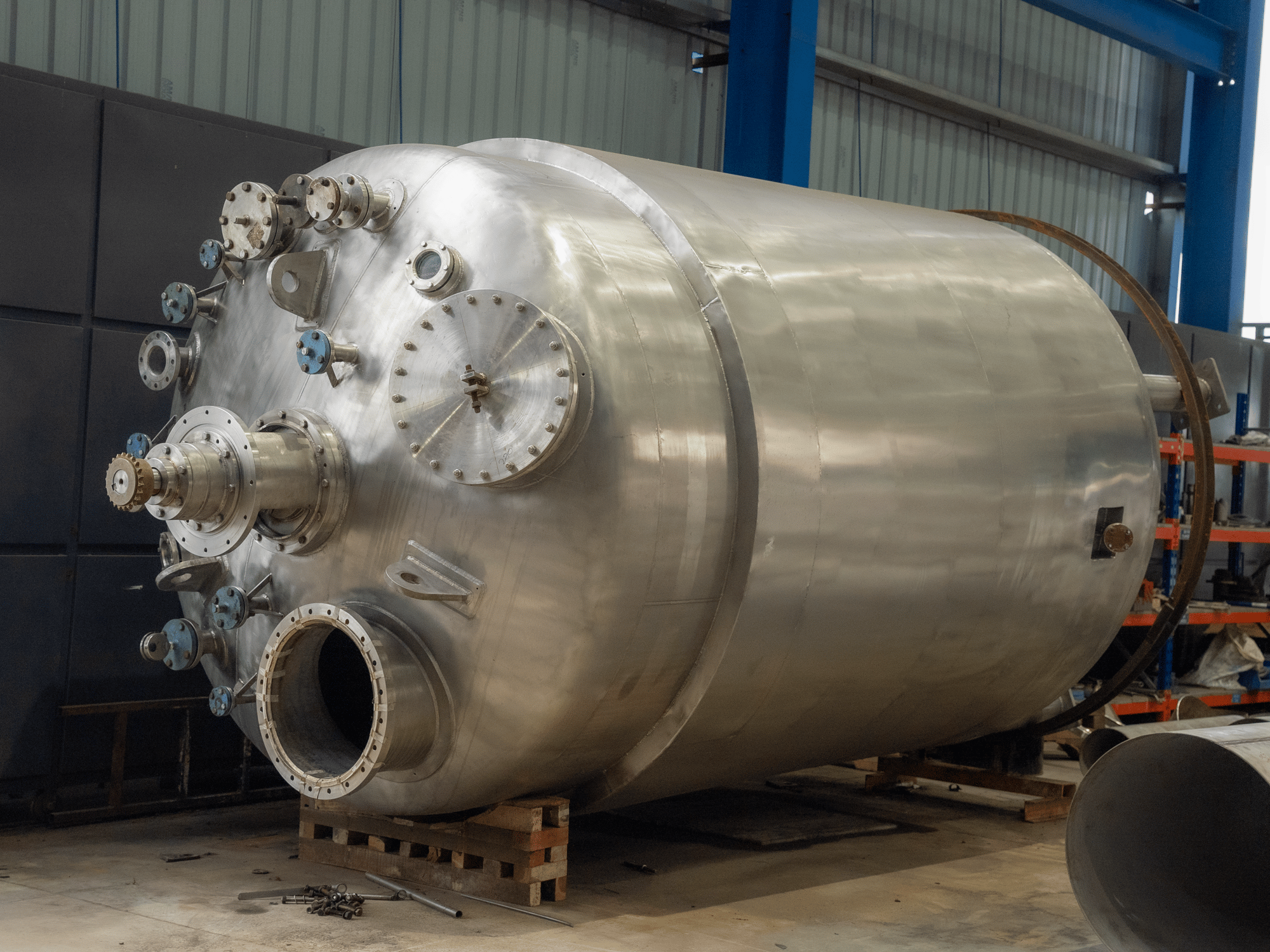

Versatile vessels for multiple process operations including dissolution, mixing, chemical reactions, batch distillation, crystallization, liquid-liquid extraction, and polymerization.
Design Features:
- Tank with integral heating/cooling system
- Top-mounted agitator assembly
- Capacities: 100 liters to 15,000 liters
- Single or double mechanical seal with cooling
Materials:
- Stainless steel (all grades)
- Hastelloy C-276, C-22
- 904L
- All exotic alloys
Specifications:
- Design code: ASME Section VIII Div-I
- Design pressure: Atmospheric to full vacuum
- Agitator types: Anchor or turbine impellers
- Jacket options: Full conventional, dimpled, or limpet coil
Capabilities:
- Can be used as hydrogenators
- Can be used as dispersers
- Multiple operations without breaking containment
Charging & Discharge:
- Liquids and solids charged via top connections
- Vapors and gases discharged through top
- Liquids discharged at bottom
Heat Exchangers
shell & tube heat exchangers
Specifications:
- TEMA C, B & R standards
- Fixed tube bundle, removable bundle, or U-tube design
- Capacity: up to 200 sq.m. area per unit
Materials of Construction:
Stainless steel (all grades)
Hastelloy C-276, C-22
Duplex steel
Titanium
904L
All exotic alloys available
Applications:
Process heating & cooling
Condensation
Reboilers
Interstage cooling/heating
Spiral heat exchangers
Extremely versatile heat exchangers for handling dirty fluids and high vacuum condensation with low pressure drop.
Advantages:
Handle fouling liquids effectively
Curved fluid channels maximize heat transfer
2-3 times less area vs. shell & tube
Small mounting area
Lower installation cost
Applications:
Heating/ cooling of fouling liquids
High vacuum condensation
Sewage sludge, PVC slurries
Fermentation broth
Mineral slurries
Pulp & paper processes
corrugated tube heat exchangers (CTHE)
Corrugated tubes create increased turbulence compared to smooth tubes, providing higher heat transfer coefficients and reducing required heat transfer area by 30-40%.
Main Features:
Different flow patterns inside tubes
Increased turbulence & mixing
High Reynolds number
Higher heat transfer coefficient
Advantages:
Compact design (30-40% area reduction)
Reduced capital investment
Fouling minimized due to turbulence
Uniform thermal processing
Most economical for vapor condensation, cooling, heating
Applications:
Condensation of vapors
Heating & Cooling duties
Processes prone to fouling
Compact installation requirements
Material Expertise & Industries
Material Expertise
Fabrication Capabilities:
Stainless Steel: 304, 316, 316L, 904L
Hastelloy: C-276, C-22
Duplex Steel
Titanium
ASME qualified welders
Exotic alloys for corrosive services
Metal cutting & welding for high alloy steels
industries served
Pharmaceuticals
Food processing
Agrochemicals
Specialty Chemicals
Polymers & resins
Dyes & intermediates
Chemicals
technical specs
note-heat exchangers are custom-designed, not fixed models.
| Parameter | Typical Range | Notes |
|---|---|---|
| Heat Duty | Custom kW / kcal/hr | Based on process load |
| Design Pressure | Up to 15–25 bar | Based on steam/oil duty |
| Design Temperature | –20°C to 250°C | Based on materials |
| Heat Transfer Area | As required | Shell & tube or PHE |
| Tube Material | SS316L / Duplex / Hastelloy | Based on corrosives |
| Shell Material | SS316L / CS / Cladded | Based on process media |
| Flow Pattern | Counter / Parallel | Optimized for ΔT |
| Fouling Factors | Custom per fluid | Included in design |
hybrid oem table
technical specifications
Reactors are custom-fabricated; therefore, no fixed model table. Format matches global OEMs like Chemglass/De Dietrich/GEA.
| Parameter | Typical Range | Notes |
|---|---|---|
| Capacity | 50 L to 30,000 L | Custom design |
| Pressure | Full vacuum to 20 bar | Based on reaction |
| Temp Range | –20°C to 250°C | Hot oil / steam / chilled media |
| Material | SS316L / Glass-Lined / Hastelloy | Based on chemistry |
| Agitation Power | 1–40 kW | Based on viscosity & mixing |
| Surface Finish | GMP / Mirror Polish | Pharma or food grade |
| Heating/Cooling | Jacket / Limpet / Coil | Based on load profile |
System Components
Condenser + reflux line
Agitator & gearbox
Mechanical seal / stuffing box
Drive motor (standard/Ex-proof)
Jacket or limpet coil
Baffles (as required)
Reactor vessel
Vacuum system (optional)
Instrumentation (PT, TT, LT)
customer benefits
High safety & mechanical integrity
Uniform temperature control
Improved batch quality
Reduced energy consumption
Long equipment life
Suitable for corrosive solvents
GMP & hygienic design options
