Pilot plant
Liquid-Liquid Extractor (LLE) Pilot Plant
See our Liquid-Liquid Extractor (LLE) in action through a pilot plant facility. You can use it at your plant site by hiring it. It is a rotating-disc type extraction column with a counter-current extraction process taking place in Liquid Liquid Extractor (LLE). At the outlet, we get an extract enriched with the desired product and raffinate with a small amount of product. The skid-mounted pilot unit consists of a feeding arrangement for the light phase, heavy phase, and settlers.

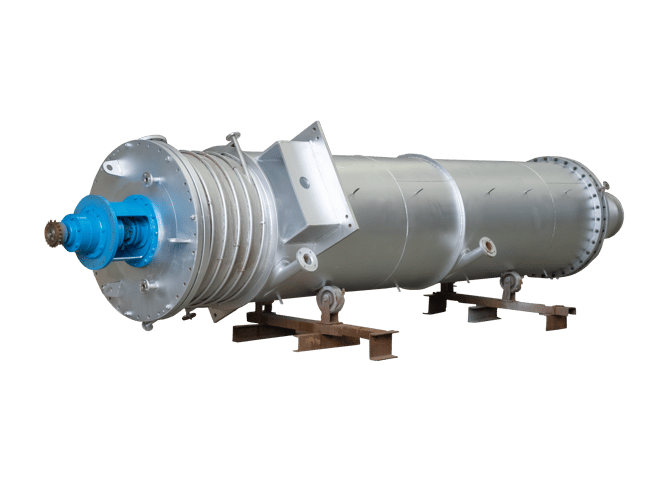

Agitated thin film dryer (ATFD)
Our ATFD pilot plant facility is available for taking trials at your site on a hire basis. Feed in the form of a slurry (ranging from 30 to 50% w/w) or a solution is converted into a thin film, which is agitated by a rotor on top of a dryer. We get dry powder at the bottom of the dryer, depending on the nature of the feed. The pilot unit is a skid-mounted unit consisting of a feeding arrangement, an external condenser, and receivers for distillate and concentrate.

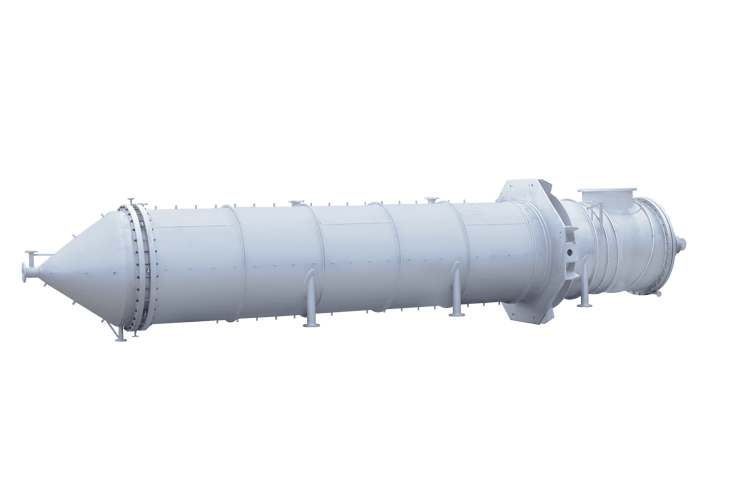

Agitated thin film evaporator (ATFE)
See our ATFE in operation by hiring the pilot plant for onsite trials. Also called a wiped film evaporator, it forms a thin, agitated film on a heated wall using a high-speed rotor. Vapor flows counter-currently through an entrainment separator. The skid-mounted unit includes a feed system, pre-heater, flash separator, external condenser, & receivers for concentrate & residue. It enables process validation & performance evaluation before full-scale installation.

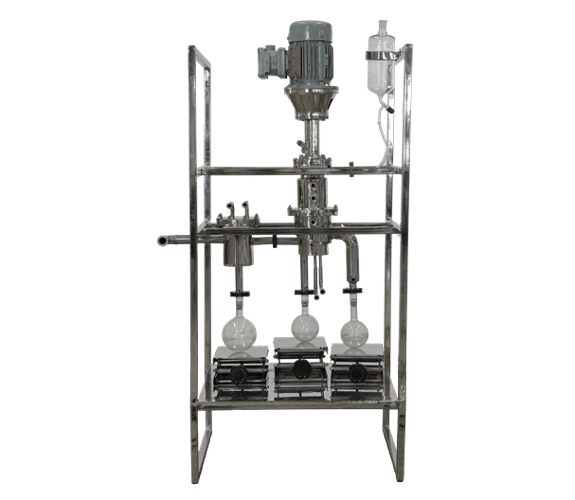

Lab evaporator set up pilot plant
See our ATFE in operation by hiring the pilot plant for onsite trials. Also called a wiped film evaporator, forms a thin, agitated film on a heated wall using a high-speed rotor. Vapor flows counter-currently through an entrainment separator. The skid-mounted unit includes a feed system, pre-heater, flash separator, external condenser, & receivers for concentrate & residue. It enables process validation & performance evaluation before full-scale installation.

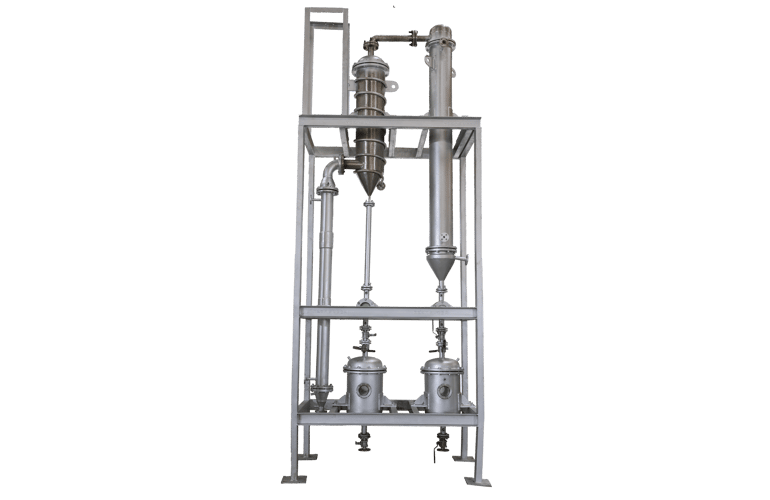

Rising film & FFE Pilot Plant
Try our single-stage Rising Film & Falling Film Evaporator Set-up pilot plant before you place an order. You can take trials at our pilot plant by hiring. It is a skid-mounted unit consisting of a separator, a condenser & receivers for distillate & concentrate.
-1.png?width=770&height=500&name=pilot%20plant%20RFE%20FFE(chng)-1.png "pilot plant RFE FFE(chng)-1")

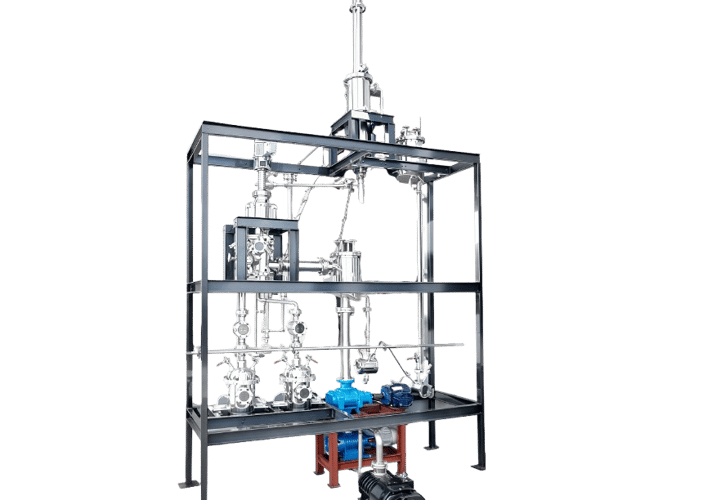

Single stage sPDU Pilot Plant
Want to see our Single Stage SPDU at work before buying one? Use our pilot plant by hiring it on a rental basis. With intention to generate scalable data and results during the pilot tests (with small sample quantities) to enable a scale up to industrial systems for later applications.
