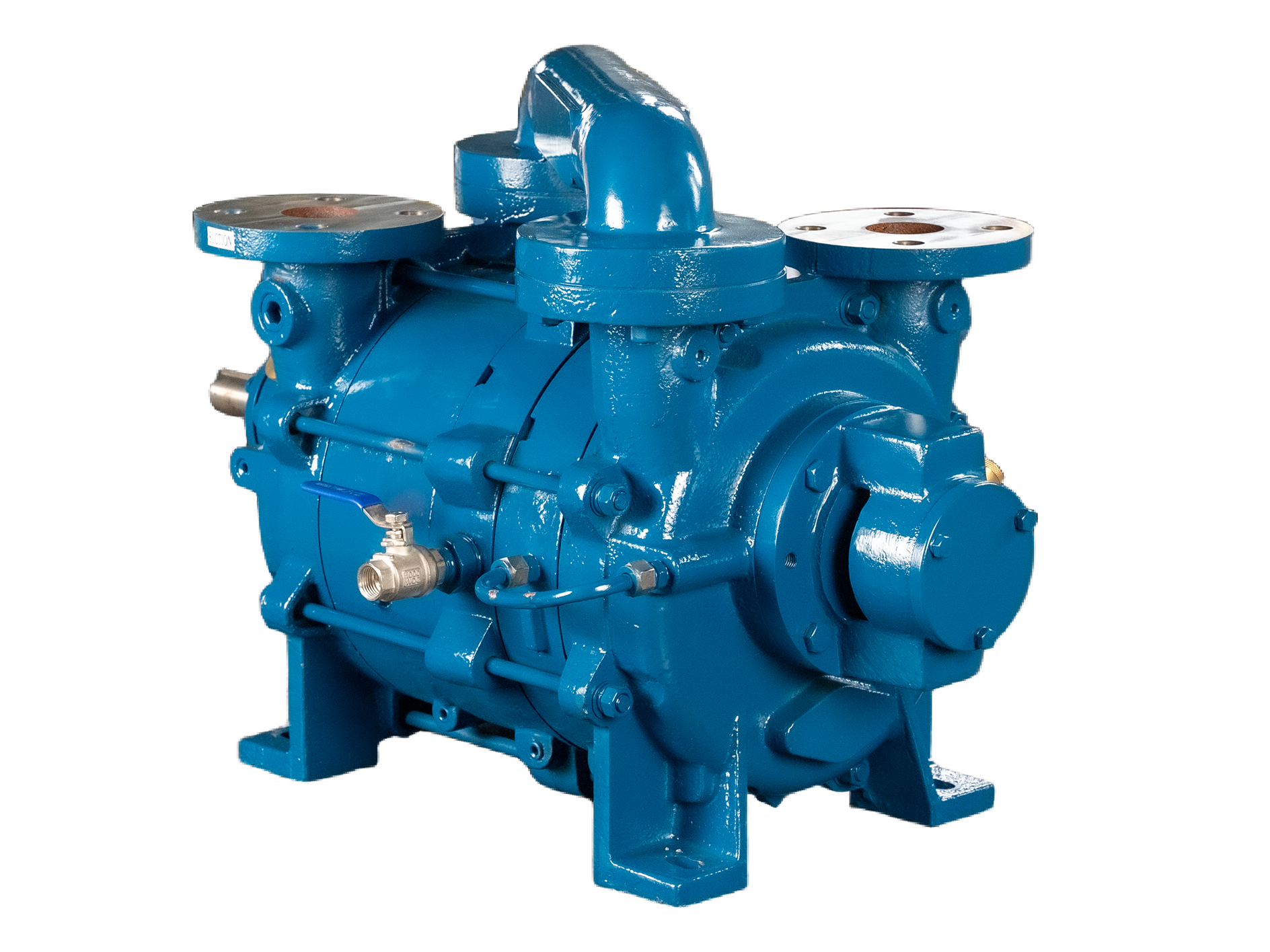

Liquid Ring VACUUM PUMPS
ELRC Series
Overview
The ELRC liquid ring vacuum pump series is engineered for saturated gases, high vapor loads, and applications involving liquids or slurries. With isothermal compression and excellent tolerance to condensables, ELRC pumps are the ideal choice where dry technologies cannot operate reliably. Their robust design, corrosion-resistant materials, and low maintenance requirements make them a preferred solution for chemical, pharmaceutical, food, and effluent treatment processes.
Applications & Industries
Applications
Distillation
Vacuum filtration
Degassing & deaeration
Solvent recovery
Reactor off-gas handling
Crystallization
Evaporators
Moisture-heavy drying
industries served
Pharmaceuticals
Chemicals
Food & beverage
Petrochemicals
Wastewater treatment
Textiles
Key Features
-
Vacuum/steam/hot-oil compatible designs
-
CIP/SIP-ready
-
Optional solvent recovery integration
-
ATEX options available
-
Corrosion-resistant (SS316L, Duplex, Hastelloy)
-
High heat transfer efficiency
-
Precise temperature control
-
GMP & cleanable surfaces available
-
Advanced drying curve analysis
ELRC SERIES — MASTER SPECIFICATION TABLE
(Actual numbers extracted from your catalogue)
|
Model |
Pumping Speed (m³/hr) |
Ultimate Pressure (mbar) |
Motor Power (kW) |
Liquid Flow Rate (L/min) |
Weight (kg) |
|
ELRC 35 |
35 |
33 |
1.5 |
20 |
65 |
|
ELRC 65 |
65 |
33 |
3.0 |
30 |
98 |
|
ELRC 110 |
110 |
33 |
4.0 |
45 |
120 |
|
ELRC 160 |
160 |
33 |
5.5 |
60 |
165 |
|
ELRC 220 |
220 |
33 |
7.5 |
70 |
220 |
|
ELRC 300 |
300 |
33 |
11 |
80 |
280 |
|
ELRC 400 |
400 |
33 |
15 |
100 |
350 |
