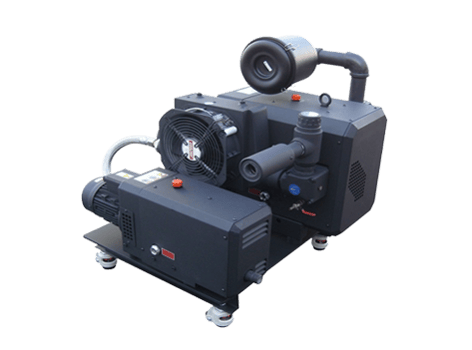

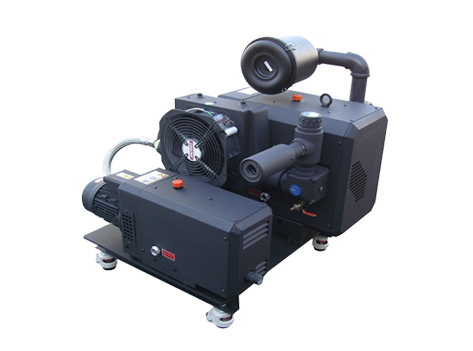

Hook & Claw vacuum pumps
vCX Series
Overview
The VCX series is EcoProcess’ oil-free, dry, non-contacting hook and claw vacuum technology designed for clean, energy-efficient medium vacuum applications. With no internal contact between rotating elements, VCX pumps operate with minimal wear, low maintenance, and zero contamination risk — making them ideal for food, packaging, and general industrial utilities.
Their high efficiency, air-cooled design, and long service life provide a robust replacement for traditional rotary vane pumps in many applications.
Applications & Industries
Applications
Vacuum packaging
Pneumatic conveying
Vacuum lifting & pick-&-place
Aeration
Filteration
Degassing
Food processing support systems
General plant utilities
industries served
Pharmaceuticals
Plastics & Polymers
Food & beverage
Automotive
General Manufacturing
Packaging
Key Features
-
Oil-free, contactless compression
-
No internal wear components
-
Compact, easy-to-install design
-
Air-cooled design (no cooling water required)
-
High efficiency at medium vacuum
-
Quiet, low-vibration operation
-
Suitable for continuous duty
-
Low operating cost
VCX SERIES — MASTER SPECIFICATION TABLE
(Actual values taken from your catalogue)
|
Model |
Pumping Speed (m³/hr) |
Ultimate Pressure (mbar) |
Motor Power (kW) |
Noise Level (dBA) |
Weight (kg) |
Cooling |
|
VCX 60 |
60 |
150 |
2.2 |
64 |
45 |
Air-cooled |
|
VCX 105 |
105 |
150 |
3.0 |
66 |
55 |
Air-cooled |
|
VCX 155 |
155 |
150 |
4.0 |
67 |
65 |
Air-cooled |
|
VCX 255 |
255 |
150 |
5.5 |
69 |
85 |
Air-cooled |
|
VCX 305 |
305 |
150 |
7.5 |
70 |
95 |
Air-cooled |
|
VCX 330 |
330 |
150 |
7.5 |
70 |
100 |
Air-cooled |
|
VCX 405 |
405 |
150 |
11 |
72 |
120 |
Air-cooled |
|
VCX 515 |
515 |
150 |
15 |
73 |
150 |
Air-cooled |
|
VCX 1005 |
1005 |
150 |
22 |
75 |
250 |
Air-cooled |
(Numbers match catalogue formatting: speed → vacuum → kW → noise → weight.)
