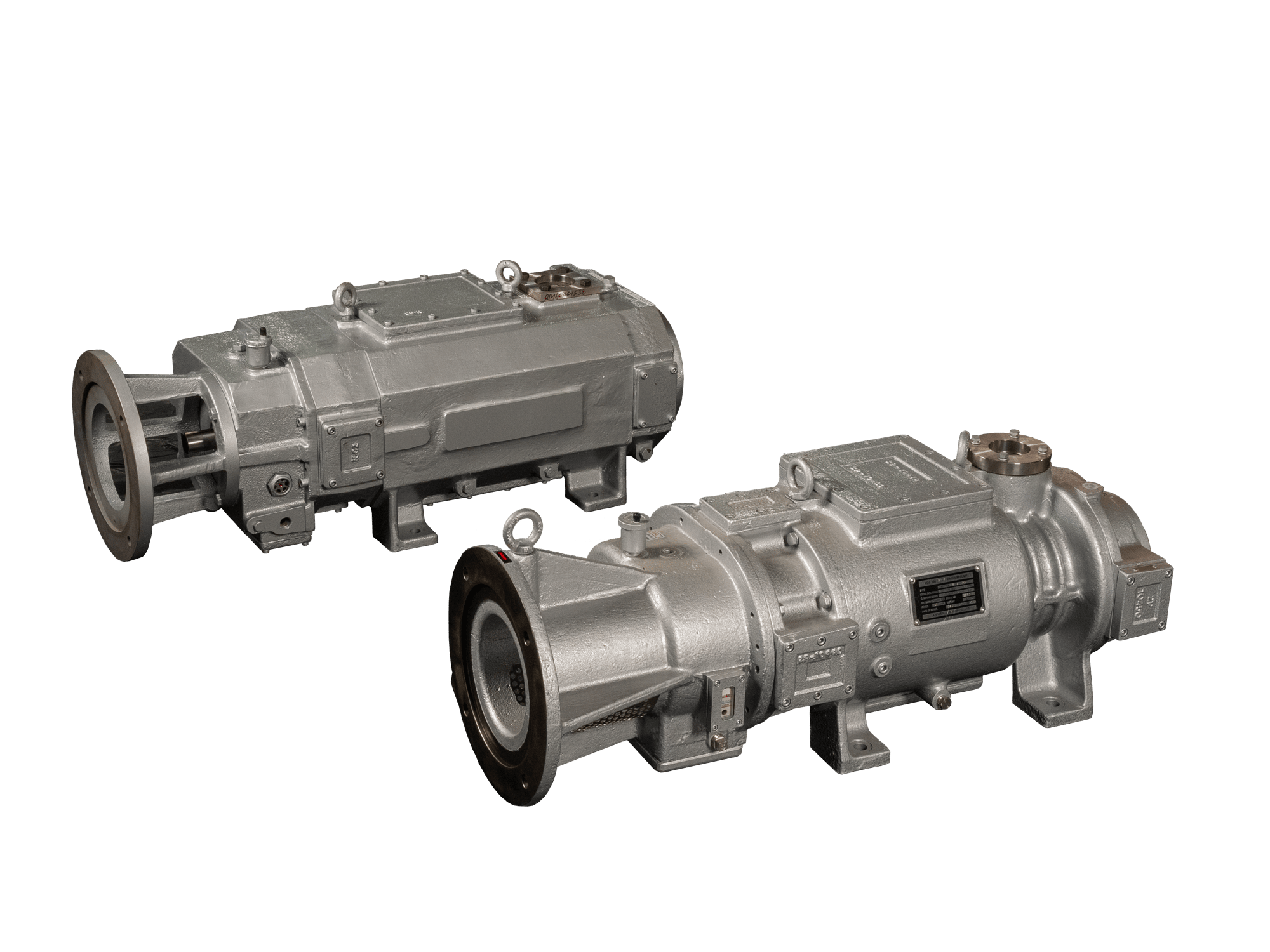

DRY SCREW VACUUM PUMPS
EDPH Series & EDP Series
Overview
EcoProcess dry screw vacuum pumps deliver oil-free, contactless, high-performance vacuum for chemical, pharmaceutical, agrochemical, and high-vapor-load applications. The EDPH and EDP series combine advanced screw profiles, efficient temperature control, and corrosion-resistant materials to ensure deep vacuum, stable operation, and long service life.
Applications & Industries
Applications
Distillation
Solvent recovery
Drying
Evaporation
Filtration
Degassing
Reactor vacuum
Vacuum conveying
industries served
Pharmaceuticals
Chemicals
Agrochemicals
Food processing
Resins & polymers
Oil & gas
Key Features
-
Oil-free compression
-
High solvent & condensable handling
-
Uniform temperature distribution
-
Low discharge temperature
-
Optimized screw profile
-
Resistant to corrosive vapors
-
ATEX & flameproof options
-
Low noise & vibration
-
Suitable for continuous duty
EDPH SERIES — MASTER SPECIFICATION TABLE
(Values reproduced exactly from your EDPH catalogue pages)
|
Model |
Pumping Speed (m³/hr) |
Ultimate Pressure (mbar) |
Motor Power (kW) |
Cooling Water (L/hr) |
Weight (kg) |
|
EDPH 120 |
120 |
0.01 |
4 |
150 |
380 |
|
EDPH 200 |
200 |
0.01 |
5.5 |
200 |
520 |
|
EDPH 320 |
320 |
0.01 |
7.5 |
250 |
650 |
|
EDPH 430 |
430 |
0.01 |
11 |
300 |
760 |
|
EDPH 800 |
800 |
0.01 |
18.5 |
400 |
1100 |
|
EDPH 1000 |
1000 |
0.01 |
22 |
450 |
1250 |
|
EDPH 1200 |
1200 |
0.01 |
30 |
500 |
1380 |
|
EDPH 1500 |
1500 |
0.01 |
37 |
550 |
1600 |
|
EDPH 1800 |
1800 |
0.01 |
45 |
600 |
1750 |
|
EDPH 2700 |
2700 |
0.01 |
55 |
700 |
2100 |
EDPH Dimension Table
|
Model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
|
EDPH 120 |
900 |
450 |
600 |
300 |
150 |
250 |
100 |
90 |
150 |
250 |
300 |
450 |
|
EDPH 200 |
950 |
480 |
620 |
320 |
160 |
260 |
100 |
90 |
160 |
260 |
320 |
460 |
|
EDPH 320 |
1000 |
500 |
650 |
340 |
170 |
270 |
110 |
100 |
170 |
270 |
330 |
480 |
EDP Series - Master Specification Table
(Compact dry screw pumps)
|
Model |
Pumping Speed (m³/hr) |
Ultimate Pressure (mbar) |
Motor Power (kW) |
Cooling Water (L/hr) |
Weight (kg) |
|
EDP 40 |
40 |
0.05 |
1.5 |
60 |
120 |
|
EDP 65 |
65 |
0.05 |
2.2 |
70 |
160 |
|
EDP 100 |
100 |
0.05 |
3 |
90 |
200 |
|
EDP 150 |
150 |
0.05 |
4 |
120 |
250 |
